TOLLSJÖN
Swedish design, quality assurance.
10 year guarantee. Read about the terms in the guarantee brochure.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
The tap functions two ways, so you can switch between a concentrated stream and a shower function.
Washing and rinsing are easier thanks to the detachable handspray.
Equipped with check valve to prevent back flow.
Please refer to packaging label for country of origin
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
To have sufficient room to use the handspray there must be at least 55 cm of space between your worktop and wall cabinet.
A tool is included that makes it easy to install the mixer tap in place.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
Max. temperature hot water system 80°C/176°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.
Tested and certified to relevant national and international mechanical, quality, safety and hygienic standards.
This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
designer
Brickstad/Palleschitz/Petersén

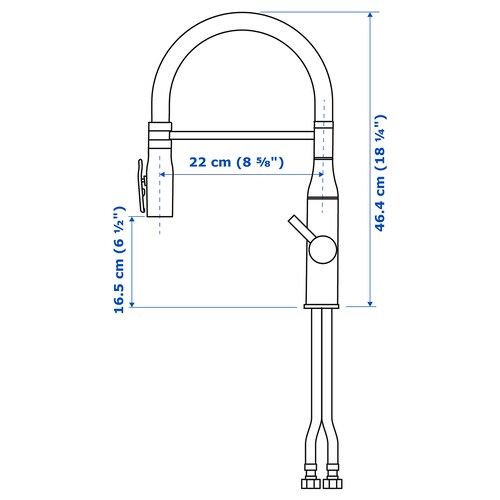

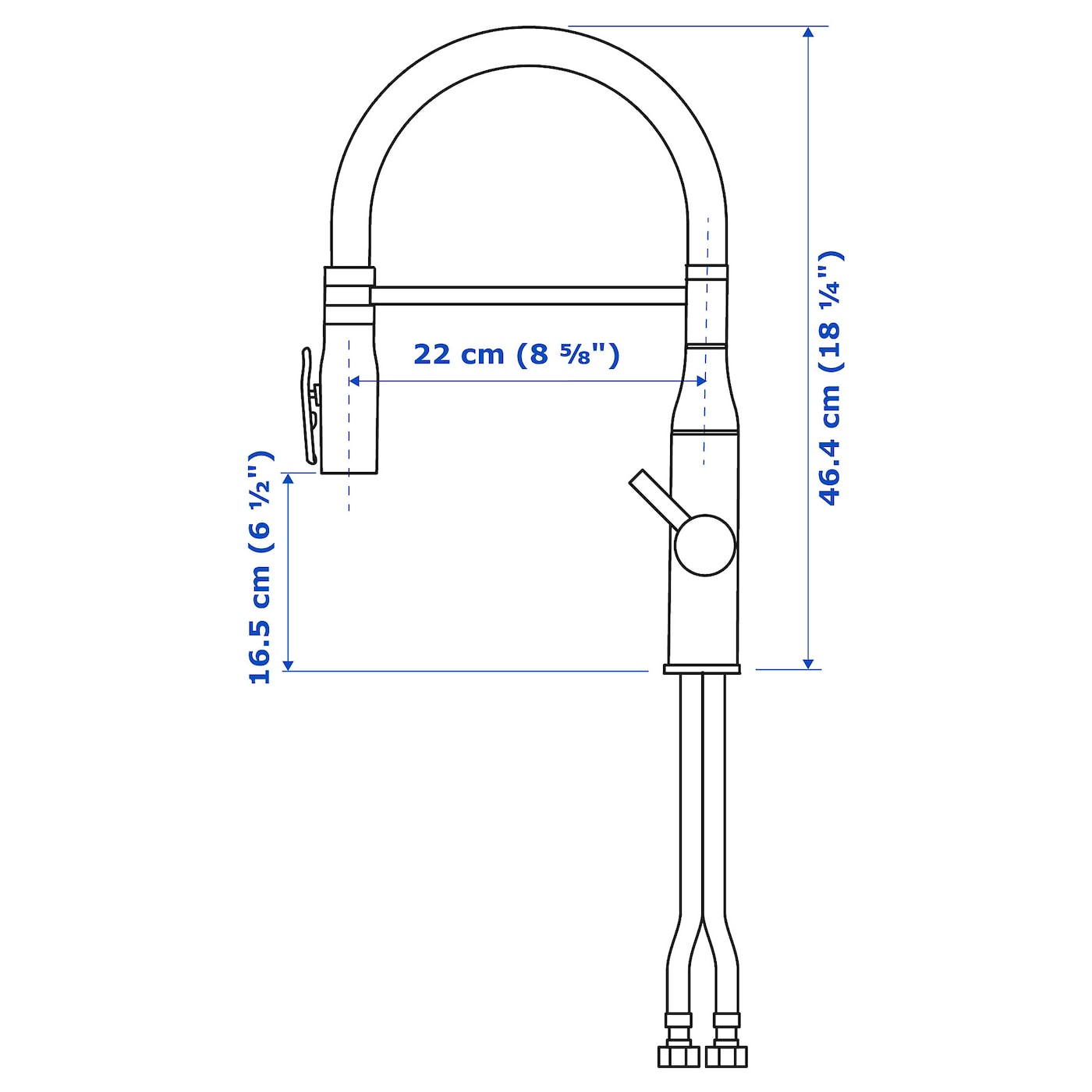

Product dimensions
Length
22 cm
Height
46 cm
Packaging info
package quantity
1
Height
6 cm
Length
53 cm
Net weight
2.65 kg
Volume
9.0 l
Weight
3.09 kg
Width
29 cm
Care instructions
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe clean with a dry cloth.
Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive.
Environment and materials
Spout:
Metallized, Brass
Body:
Brass, Metallized
Item #
Assembly instructions
003.416.93
TOLLSJÖN kitchen mixer tap/handspray
Item #
Related documents
003.416.93
TOLLSJÖN kitchen mixer tap/handspray
When you use an IKEA kitchen mixer tap, you're saving water thanks to an aerator that reduces flow while maintaining pressure. We didn't invent aerators, but think they are a good example of how we value water. It's one of Earth's most precious resources, yet very little of it is drinkable and even less is accessible. No organism can survive without it either. That's why we want to be good stewards of water at every step, whether in our factories or in your kitchen mixer tap.
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
