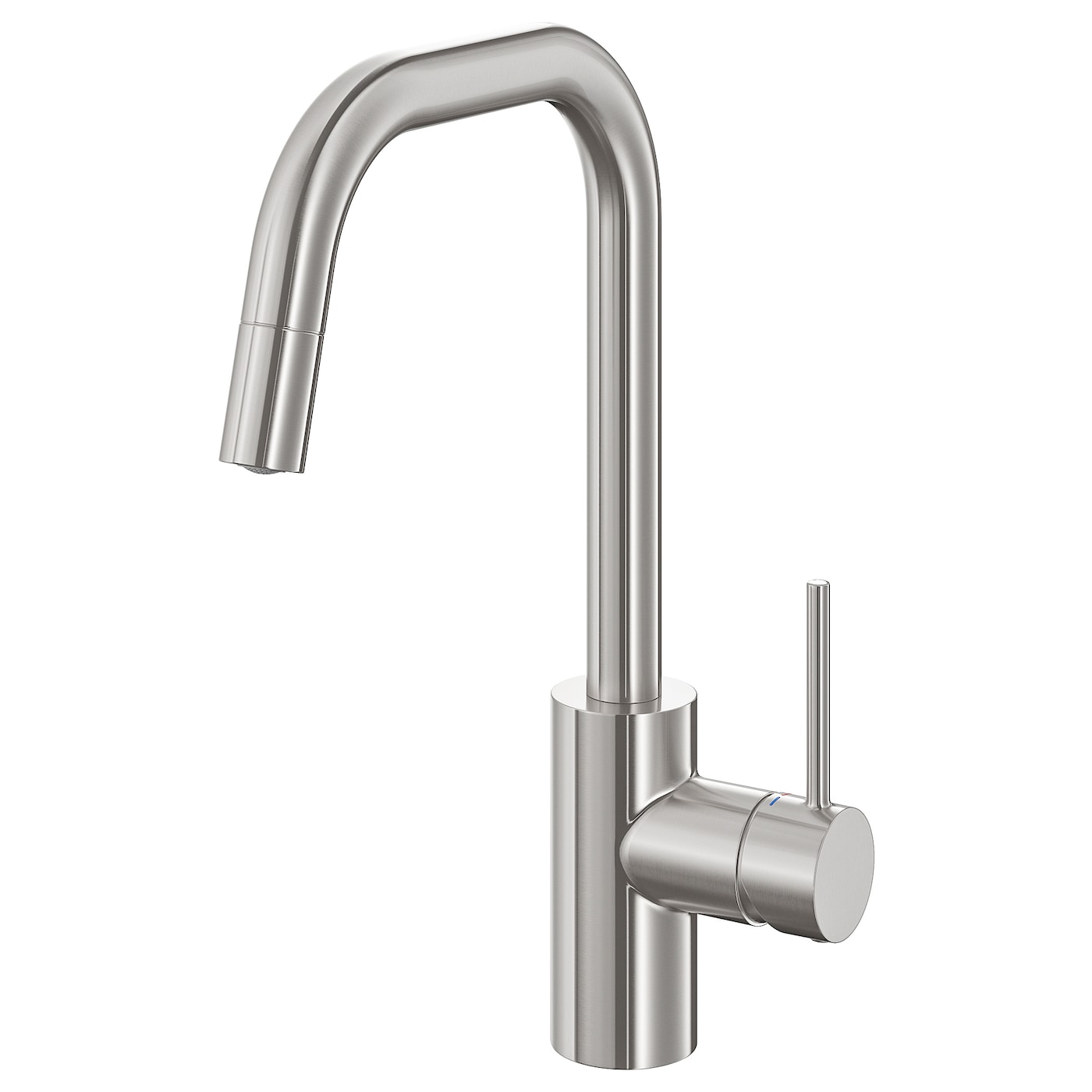

ÄLMAREN
Swedish design, quality assurance.
10 year guarantee. Read about the terms in the guarantee brochure.
Rinsing dishes is easier with the pull-out spout.
A counterweight makes the hose easily retract back into the kitchen mixer tap.
The mixer tap insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Equipped with check valve to prevent back flow.
Please refer to packaging label for country of origin
Tested and certified to relevant national and international mechanical, quality, safety and hygienic standards.
This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 35 mm hole in a max. 50 mm thick sink/worktop.
To make a hole for the kitchen mixer tap FIXA 2-piece tool set can be recommended; sold separately.
Water and energy saving aerator (5.7 l/min.) for high-pressure systems included.
Connection hoses with 1/2" connection included. Connection length: 50 cm.
A tool is included that makes it easy to install the mixer tap in place.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

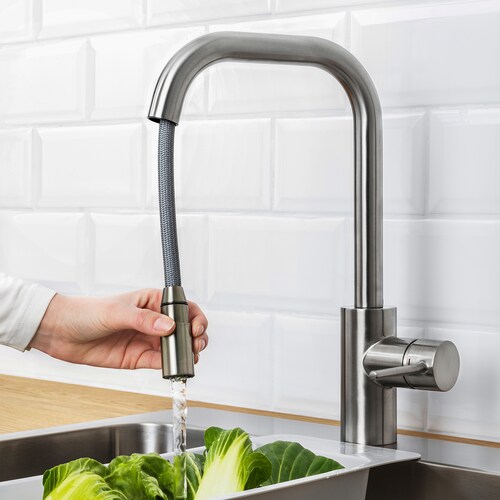

The spout can be pulled out approx. 30 cm.
Swivel spout is preset to 120° but can be changed to 90°.
designer
Brickstad/Palleschitz/Petersén

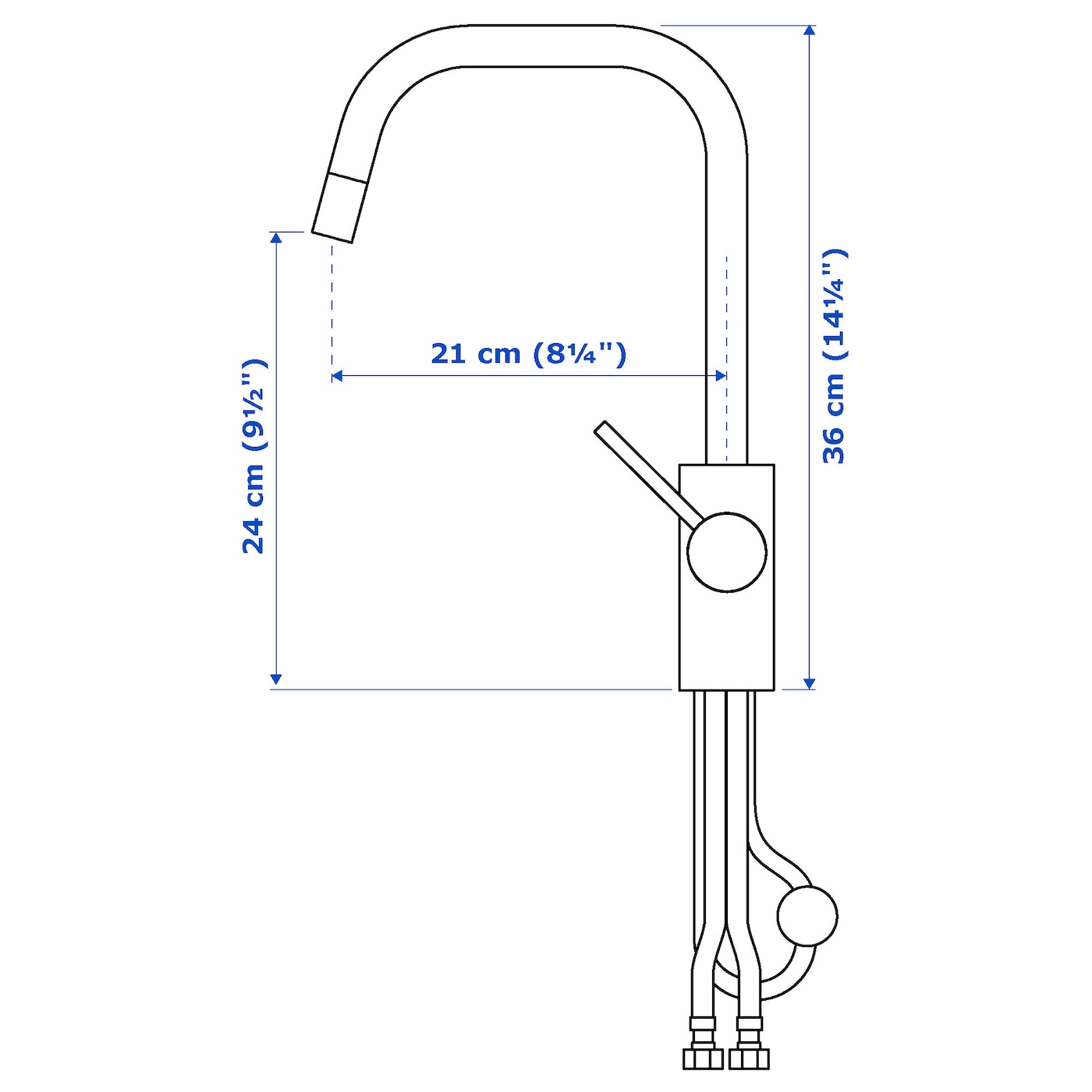

Product dimensions
Height
36 cm
Packaging info
package quantity
1
Height
7 cm
Length
55 cm
Net weight
2.23 kg
Volume
11.1 l
Weight
2.88 kg
Width
29 cm
Care instructions
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened in water and a mild washing-up detergent or soap, if necessary.
Wipe dry with a clean cloth.
Environment and materials
Zinc, Metallized
Item #
Assembly instructions
603.416.47
ÄLMAREN kitchen mixer tap w pull-out spout
Item #
Related documents
603.416.47
ÄLMAREN kitchen mixer tap w pull-out spout
When you use an IKEA kitchen mixer tap, you're saving water thanks to an aerator that reduces flow while maintaining pressure. We didn't invent aerators, but think they are a good example of how we value water. It's one of Earth's most precious resources, yet very little of it is drinkable and even less is accessible. No organism can survive without it either. That's why we want to be good stewards of water at every step, whether in our factories or in your kitchen mixer tap.
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
