Detail

UNDERVERK
Swedish design, quality assurance.
5 year guarantee. Read about the terms in the guarantee brochure.
Can be installed in two ways, either ducted to the outside or in recirculation mode fitted with charcoal filter.

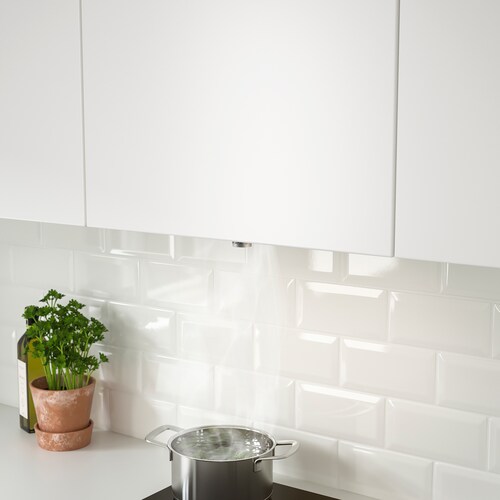

Fully integrated; hidden behind your kitchen cabinet door, creating a uniform expression.

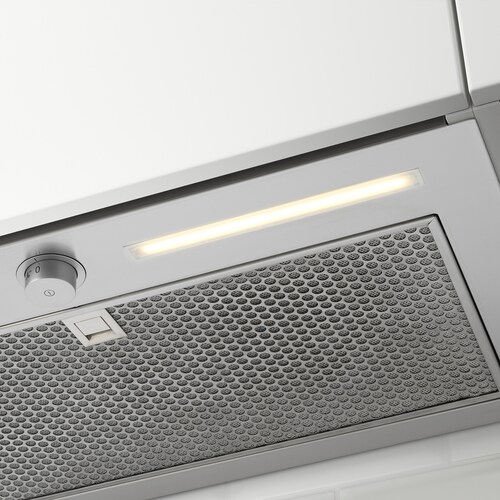

LED light source included; effectively illuminates the cooking surface and provide energy saving.
You can easily remove and clean the grease filter in the dishwasher.
Please refer to packaging label for country of origin
Extraction rate in exhausting mode: 630 m³/h.
Noise level at max. exhaust speed: 64 dB (A).
Extraction rate in re-circulation mode: 365 m³/h.
Noise level at max. re-circulation speed: 79 dB (A).
Voltage: 220V.
For installation to a valve: to be completed with NYTTIG tube 125 flexible pipe for extractor hood.
For recirculation installation: to be completed with NYTTIG tube 125 and charcoal filter NYTTIG FIL 500.
You will find complete information about the installation and use of this product under the tab Assembly instructions & documents.
Developed to fit into METOD kitchen system.
Built in extractor hood with 3 different speeds.
Cabinet, front(s), hinges and knob(s) or handle(s) sold separately.
designer
IKEA of Sweden

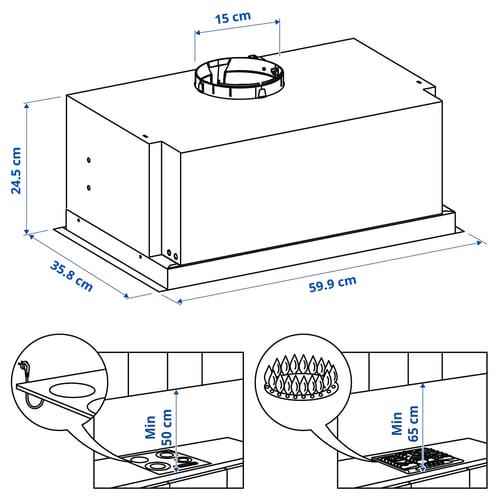

Product dimensions
Width
59.9 cm
Depth
35.8 cm
Height
24.5 cm
Cord length
110.0 cm
Weight
11.00 kg
Motor power
250 W
Packaging info
package quantity
1
Height
34 cm
Length
64 cm
Net weight
7.38 kg
Volume
93.8 l
Weight
10.00 kg
Width
43 cm
Care instructions
Clean surfaces with a soft cloth dampened with water and a mild washing-up detergent/soap or a cleaning detergent specifically designed for the appliance.
Never use corrosive or abrasive detergents, abrasive sponges, scourers or metallic scrapers.
Item #
Assembly instructions
205.089.60
UNDERVERK built-in extractor hood
Item #
Related documents
205.089.60
UNDERVERK built-in extractor hood
205.089.60
UNDERVERK built-in extractor hood
205.089.60
UNDERVERK built-in extractor hood
Sound levels for appliances are measured in decibels (dBs). Our extractor hoods have been tested in speed 3 to determine the dB level. The sound level of your extractor hood is affected by: • Type of installation. Exhaust-mode or recirculation-mode. • Length and diameter of the exhaust pipe between extractor and exhaust vent. The longer it is and the smaller the diameter, the louder it gets. • 90° bends. The more bends you have in the exhaust pipe, the greater the sound.
For extractor hoods, a noise level below 60 dB is considered low – roughly equivalent to a normal conversation between two people. We measure the noise level of our hoods at max speed, making it easier to compare different models. Note that sound levels decrease at lower speeds, and recirculating hoods are typically louder than those vented outdoors. Noise may also increase if the ducting is long or has several bends, as the air has to work harder to pass through the system.
