Detail

10 year guarantee on the mixer and 3 year guarantee on other parts. Read about the terms in the guarantee brochure.

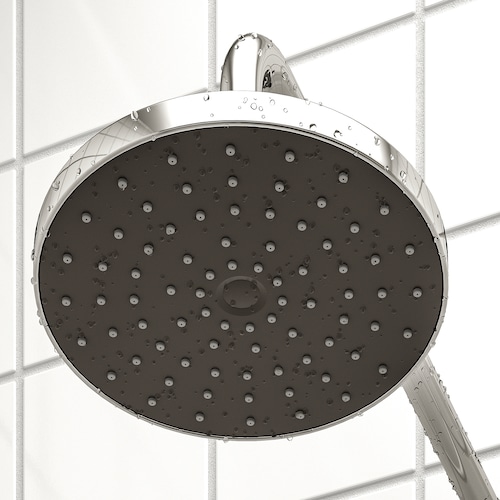

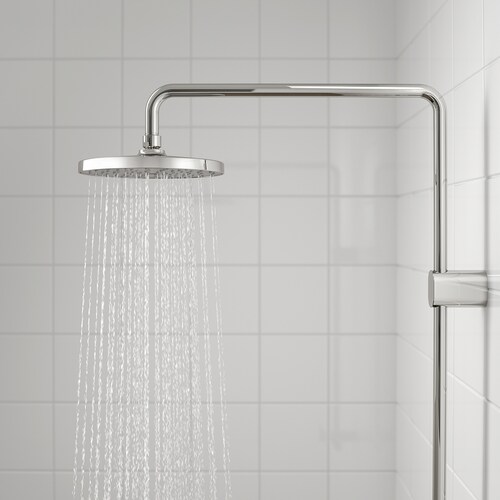

The full spray function of the head shower gives a wide and even coverage over the body, for a calming rainfall feeling.

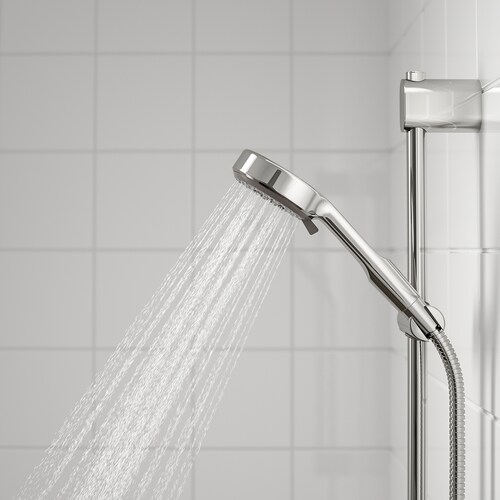

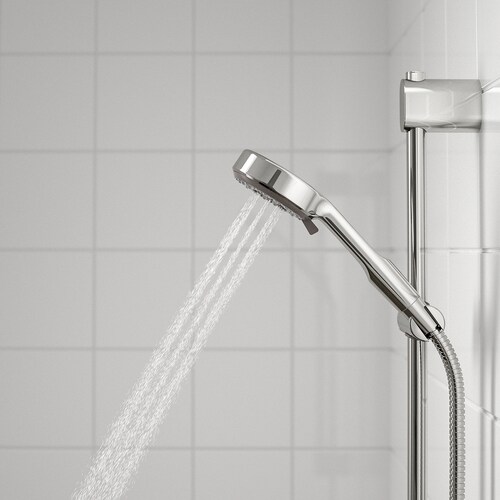

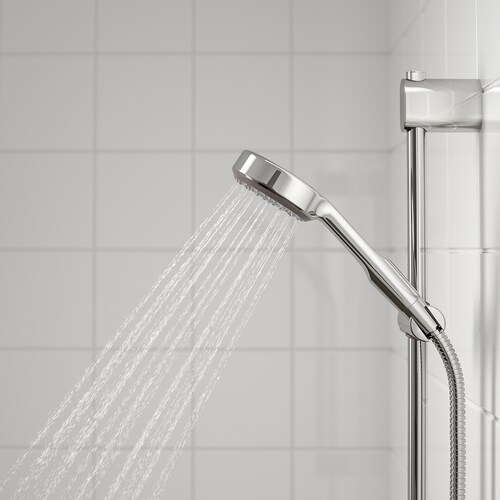

This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.

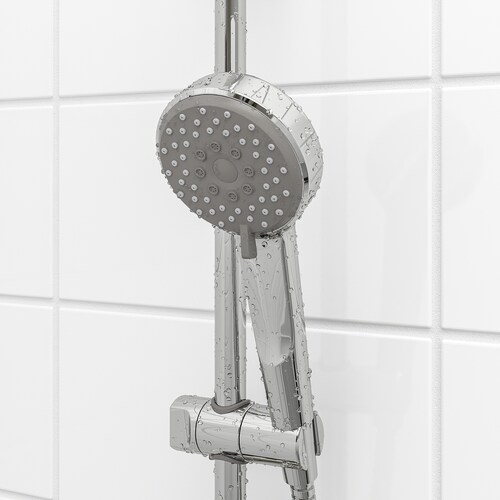

The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.

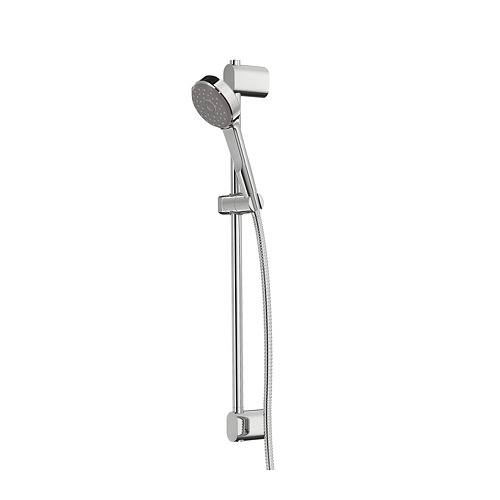

You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.
Easy to clean by rubbing the rubber nozzles on the shower heads.

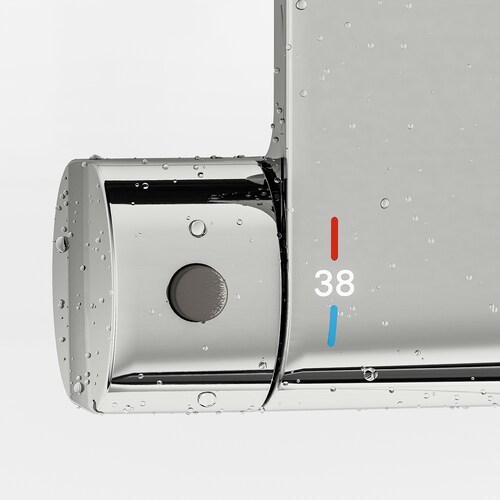

A 38°C safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control.
The shower mixer has a “cold touch” feature. Thanks to the anti-scald technology, the surface of the mixer bar never heats up and is always safe to touch.

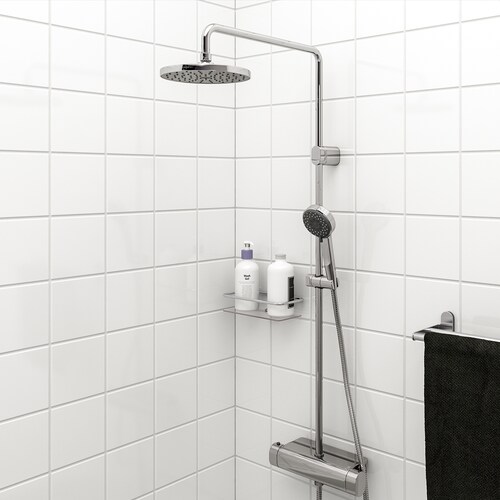

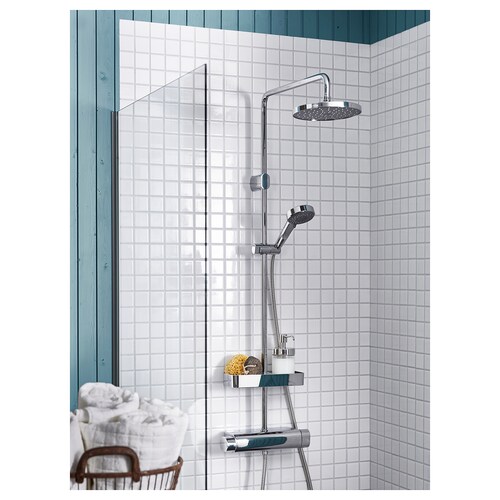

The built-in shelf on the shower mixer is perfect for all those tall shampoo bottles that are often tricky to store in the shower.
You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds.
A washer integrated in the shower keeps the water flow just right while less water and energy is used.
Please refer to packaging label for country of origin

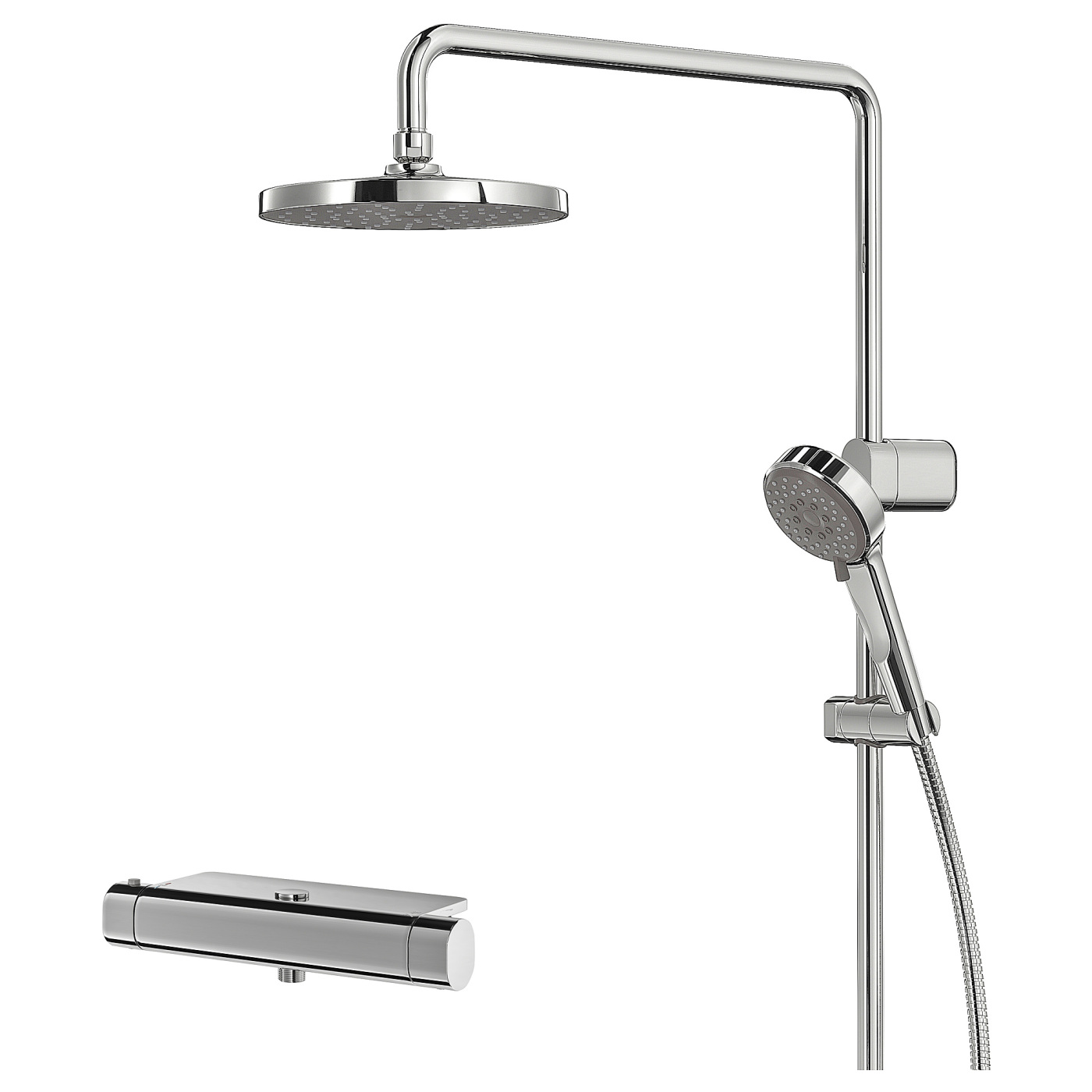

The head shower comes with full spray and the hand shower comes with full, mesh and full/mesh spray functions.

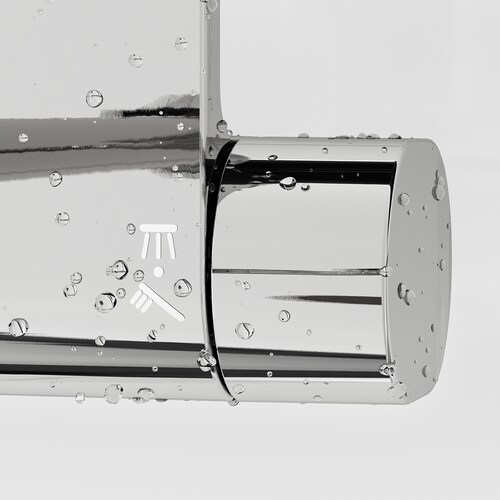

Separate flow and temperature controls.
You can override the safety stop temperature by pressing the override button.
150 mm fixed inlet centres.
Wall fittings included.
Pressure compensating flow regulator included.
The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions.
Max. temperature hot water system 80°C/176°F.
Recommended hot water temperature: 60°-65°C/140°F-149°F.
Recommended cold water temperature: 10-15°C/50°F-59°F.
The hand shower consumes 6.8 l of water/min. and the head shower consumes 9.5 l of water/min.
Spare parts can help to prolong the life of your IKEA product. For information about spare parts available in your market, contact IKEA Customer Services at your IKEA store or IKEA.com.
The thermostatic shower mixer can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa).
designer
H Preutz/N Karlsson

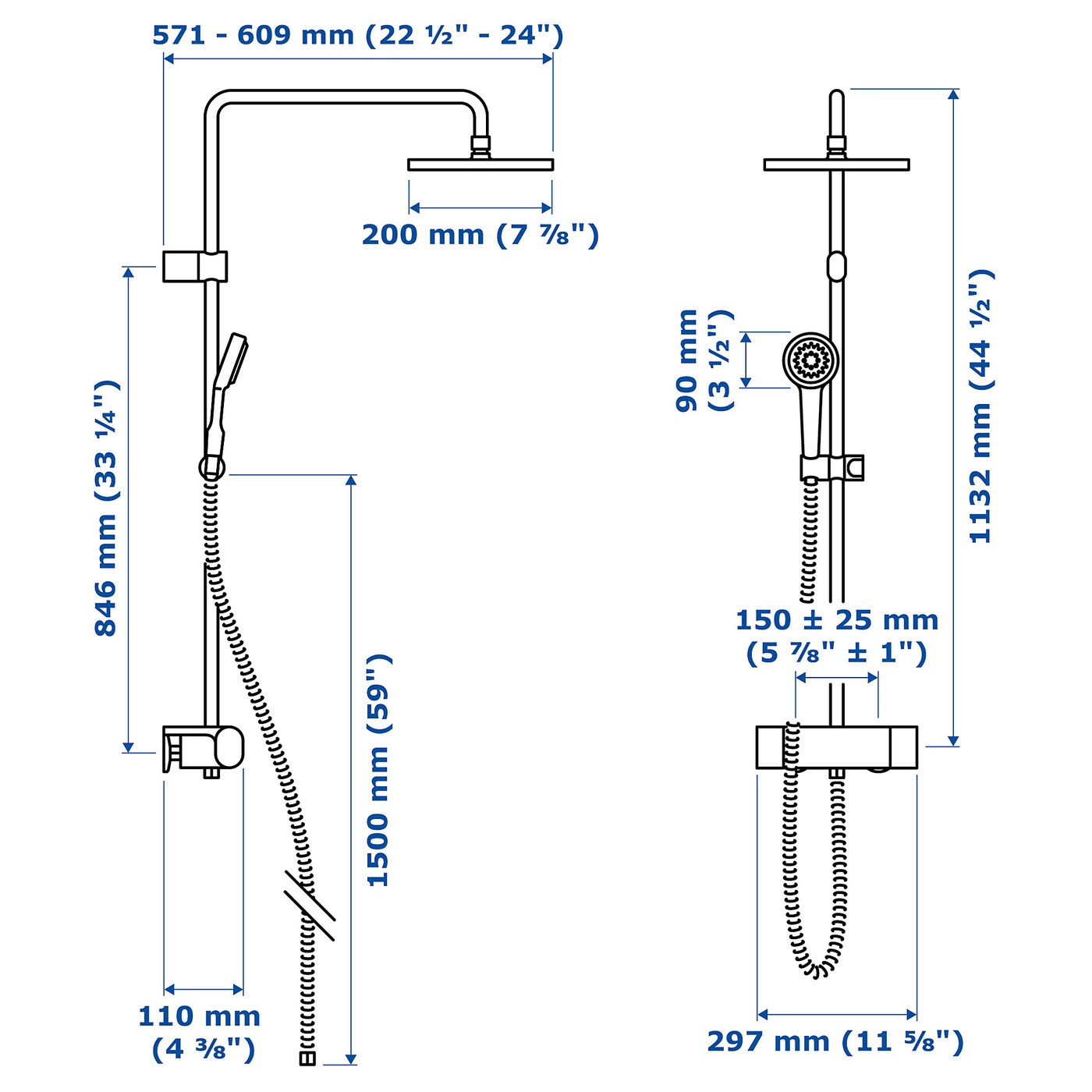

Product dimensions
Connection centre distance
150 mm
Handshower diameter
90 mm
Headshower diameter
200 mm
Length of hose
1500 mm
Width
300 mm
Depth
570 mm
Height
1170 mm
Packaging info
package quantity
1
Height
11 cm
Length
86 cm
Net weight
5.95 kg
Volume
32.0 l
Weight
7.55 kg
Width
34 cm
Care instructions
To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.
Rub away limescale deposits with your hands.
Turn the thermostat from full cold to full hot from time to time.
Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions.
Check the washers on a regular basis.
Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.
Environment and materials
Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate:
Acetal plastic
Handheld showerhead outer housing/ Overhead shower outer housing:
ABS plastic, Chrome-plated
Nozzle:
Synthetic rubber
Inner hose:
Silicone rubber
Outer hose:
Stainless steel
Pipe:
Brass, Chrome-plated
Rail fitting:
Steel, Zinc, Chrome-plated
Holder:
Acetal plastic, Chrome-plated
Thermostat body:
Brass
Thermostat housing/ Handle:
Zinc, Chrome-plated
Item #
Assembly instructions
003.425.36

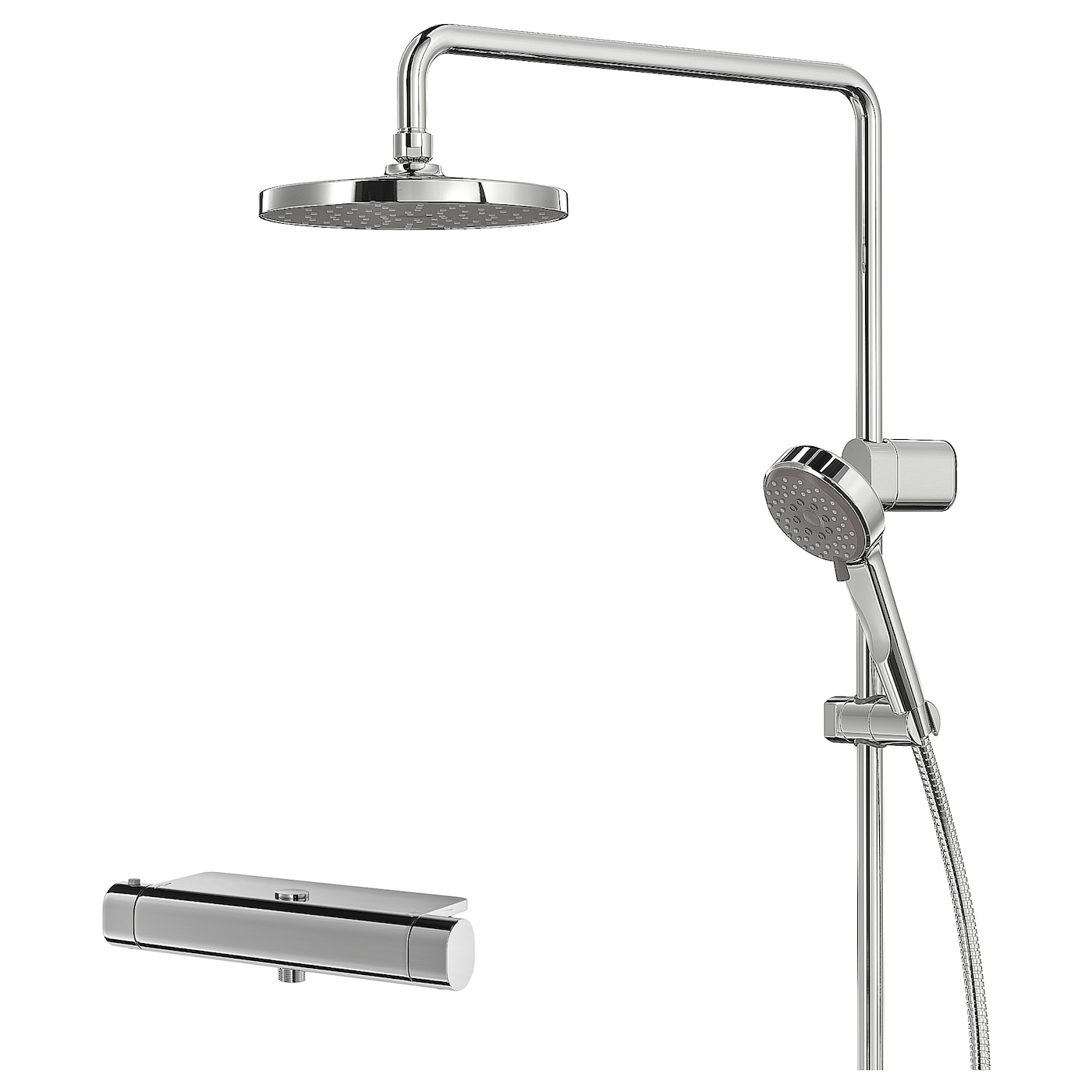

BROGRUND shower set with thermostatic mixer
Item #
Related documents
003.425.36
BROGRUND shower set with thermostatic mixer
IKEA thermostatic shower mixers have a 38°C safety button that must be deliberately pressed to reach higher temperatures, but will never exceed 46°C – which is safe for human skin. Another smart feature is the “cold touch", anti-scald technology which ensures that the shower mixers will never heat up or cause burns. Whether the preference is modern or more traditional style, IKEA shower mixers offer a great shower experience with highest safety in mind.
IKEA thermostatic shower mixer sets have a 38°C safety button, “cold touch" anti-scald technology and a pressure compensating function that reduces water- and energy-use by up to 30%. There is a 10-year guarantee on thermostatic mixers and a 3-year guarantee on riser rails, hoses, head and hand showers. On top of this, there is a coordinated range of bathroom accessories. In short, you can enjoy a great shower experience in a bathroom with your unique style.
Our head and hand showers provide individual comfort with the option to choose between 1, 3 or 5 spray functions. Choose FULL for a wide and even coverage; MESH to boost the force; MASSAGE to vary to flow; or MIST to de-stress with fine, gentle droplets. You can also choose combinations like FULL/MIST, FULL/MESH or FULL/MASSAGE. All shower mixers have a pressure compensating function that reduces water-use and gives you an even flow – even when the water pressure changes.
Our shower range offers everything you need for a pleasant shower. The thermostatic shower mixers come with “cold touch" and anti-scald technology. The head and hand showers come with different spray functions and a pressure compensating function that reduces water- and energy-use by up to 30%. There is a range of coordinated bathroom accessories that keep all those bottles off the floor. Add to this, a 10-year guarantee on the thermostatic mixers and a 3-year guarantee on riser rails, hoses, head and hand showers.
When you stand in the shower in the morning and rub the sleep out of your eyes, spraying water may seem like a given. But the world's fresh water is limited and we need to help nurture it. That's why we developed our shower range with technology that helps you save water and energy. The secret was to find the right balance between the water spray and water consumption, so you use less water without losing out on a nice shower experience.
Each of our head/hand showers has a small pressure compensating washer (PCW) that reduces water flow while maintaining the pressure. It’s a small part of our bigger effort to conserve water. We’re committed to being water positive by 2020, that is, conserving more clean water than we use. And every water-saving action adds up.
Brass is a mixture of copper and zinc and the amounts vary depending on the desired properties. Copper is usually the main material and the more zinc you add results in the brass being harder and stronger, but also results in it being more difficult to shape and less resistant to rust. Brass can be recycled as brass but never into its original metals. At IKEA we use brass for things like knobs, handles, frames and taps.
